Series 2, 2A & 3, 10″ REAR brake kit

Description

LOF Series 2, 2A & 3 10″ REAR brake drum set by LOF Brakes.

Here at LOF we like to do everything better, and lets be honest the Series Brake drums available on the market currently are terrible, so we set out to make the best!

2 major things we corrected in our kit:

1. The Concentricity or ‘Roundness’ of our drums, we managed to make the 10″ Series drums to a maximum tolerance of 40 microns  concentricity and 50 microns run out, this is tighter than any manufacturer of brake drums ever!

2. The Shape and precision match of the Brake shoes to suit the drums, with a brake compound designed to avoid against squeaking and juddering! All Series owners will know what we mean! In addition, we fitted the shoes with a solid correctly shaped post rivet for spring retention, you will know cheaper brands have a straight cut rivet that tends to fall out!

For complete transparency we would like to inform you that our Series 3 Drums and shoes are made in Scandinavia, Europe, with a keen eye on quality!

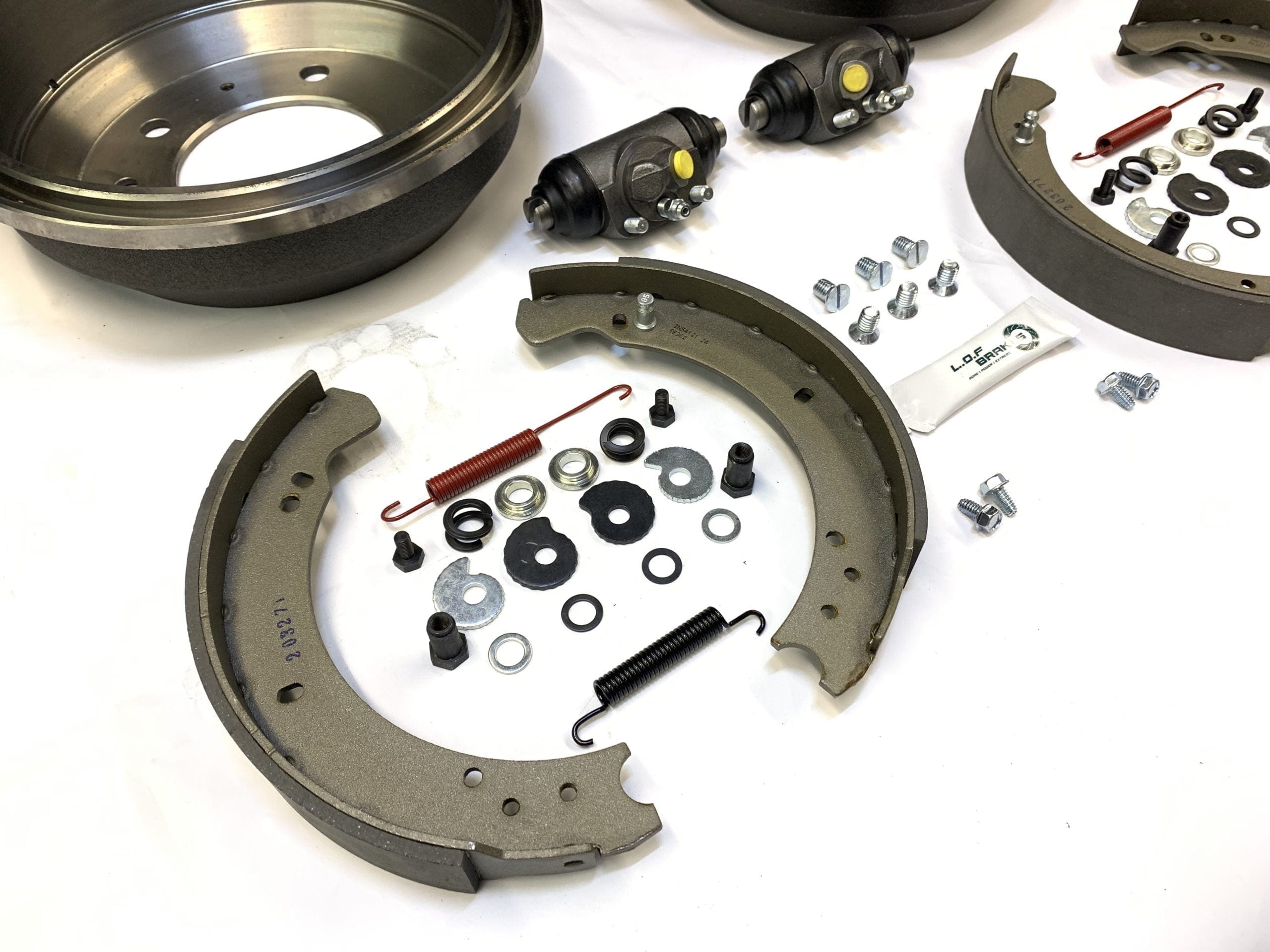

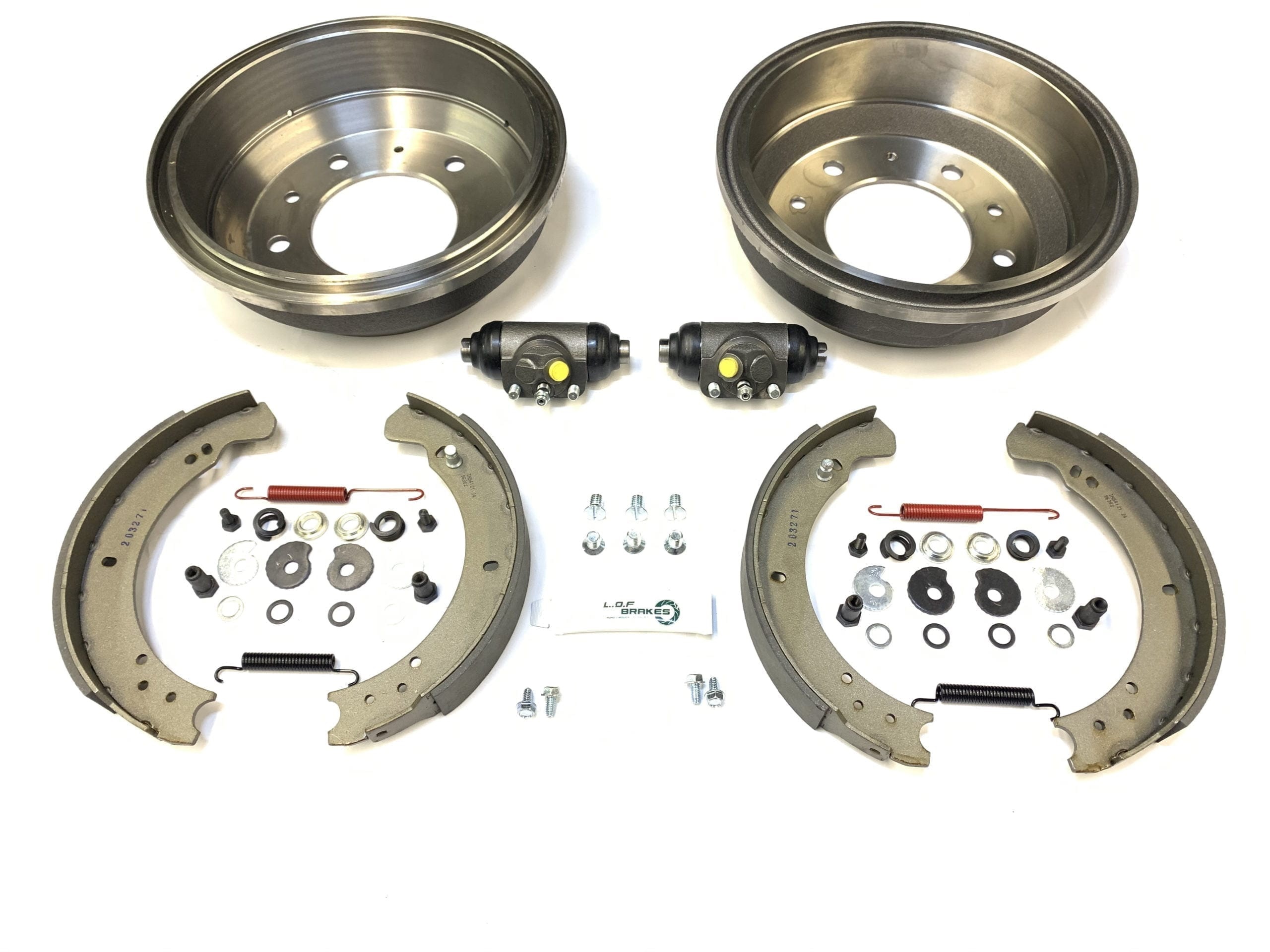

So whats included in the kit?

• 2x LOF 10″  Drums

• 4x LOF 10″ Series brake shoes

• 1x LH Delphi brake cylinder Part 243303

• 1x RH Delphi brake cylinder Part 243302

• 6x Drum retaining screw Part 1510

• 2x Shoe spring 503981

• 2x Shoe spring 218983

• 1x RTC3176 Adjuster kit
