Land Rover Series Front Disc Brake conversion 88″ & 109″ (Series 2/2A/3)

Description

Land Rover Series Front Disc Brake conversion – 88″ & 109″ (S1/2/3)

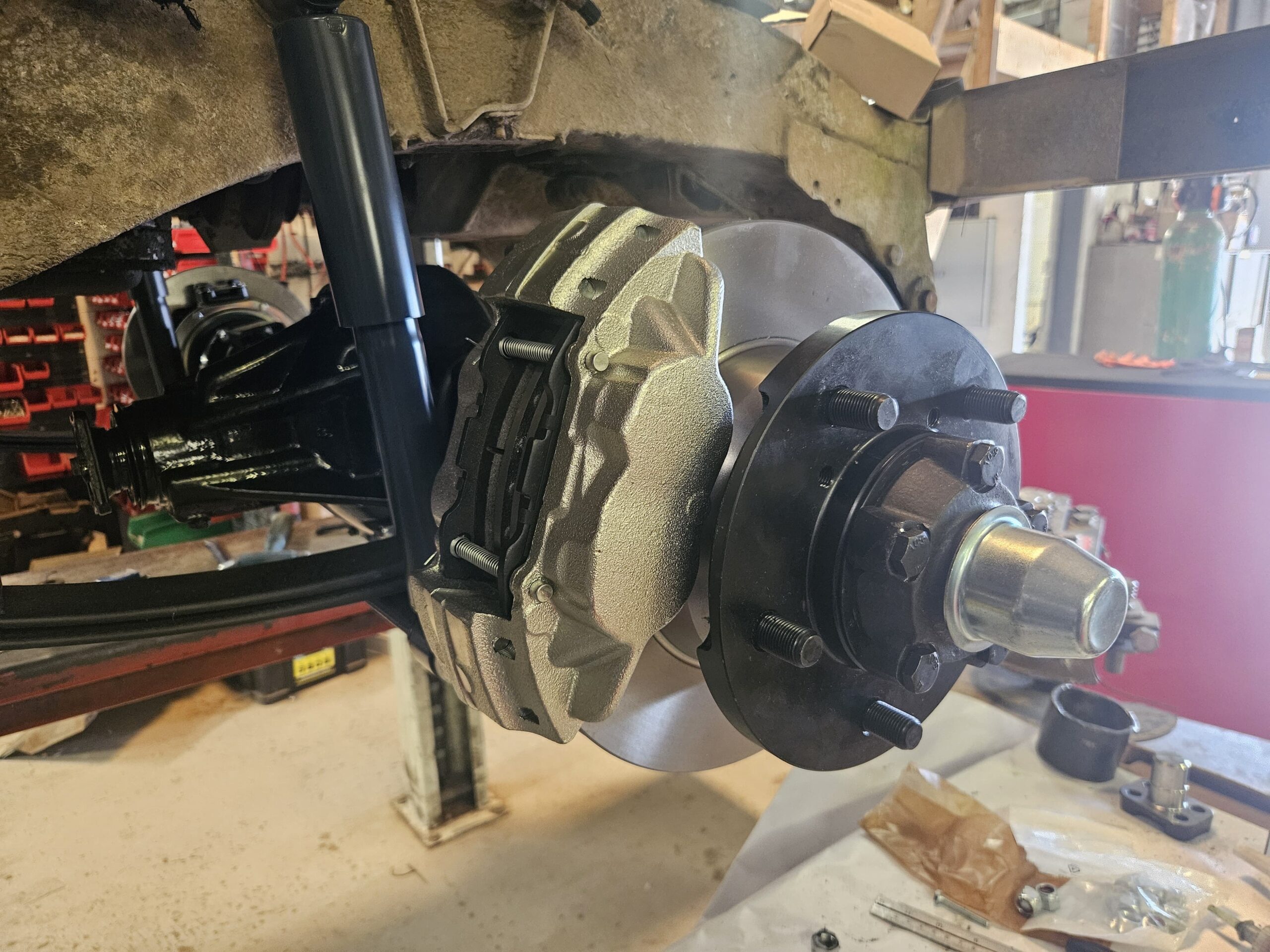

Our newest creation- the LOF Disc brake conversion kit for the front of a Series Land Rover.

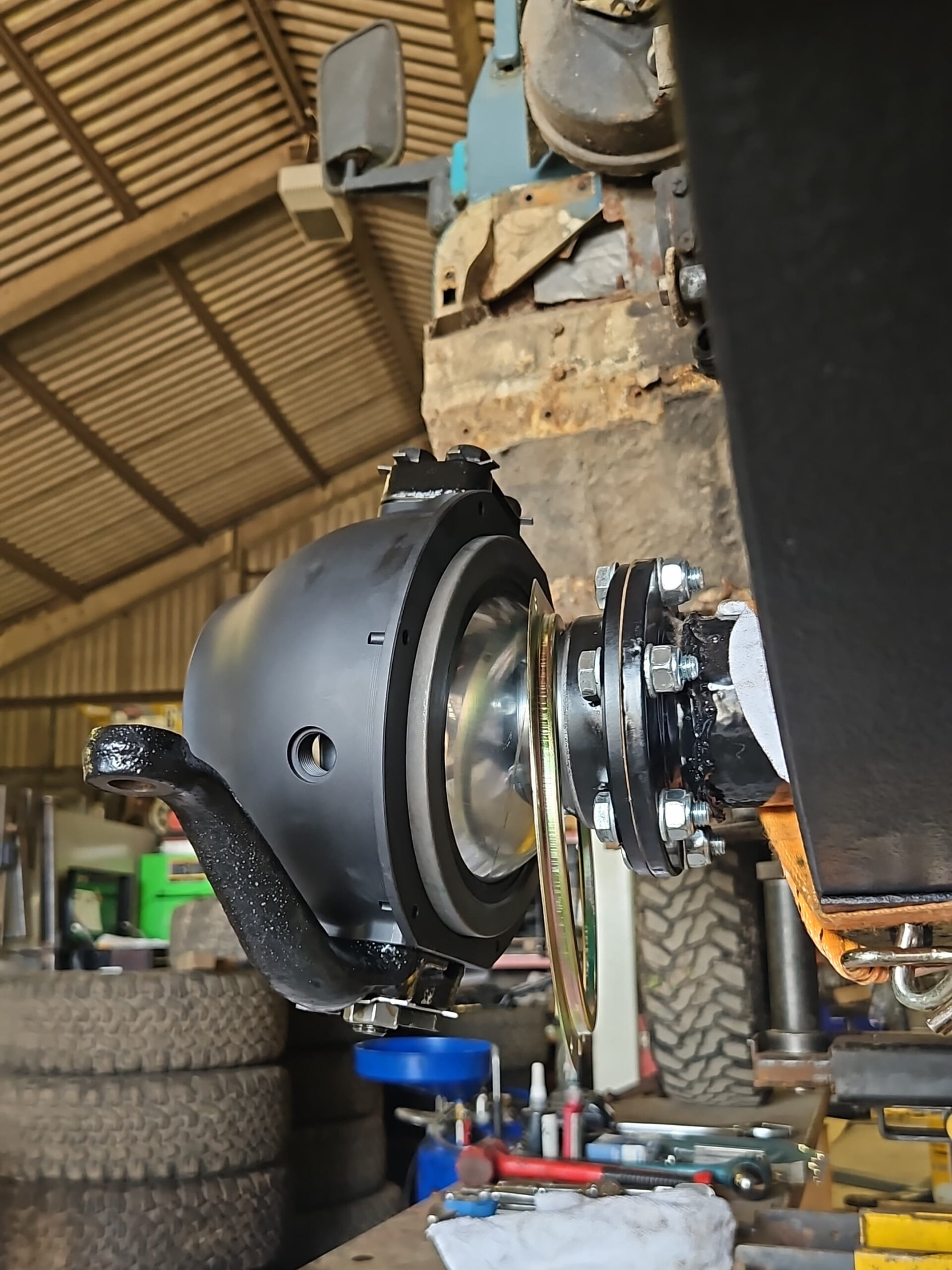

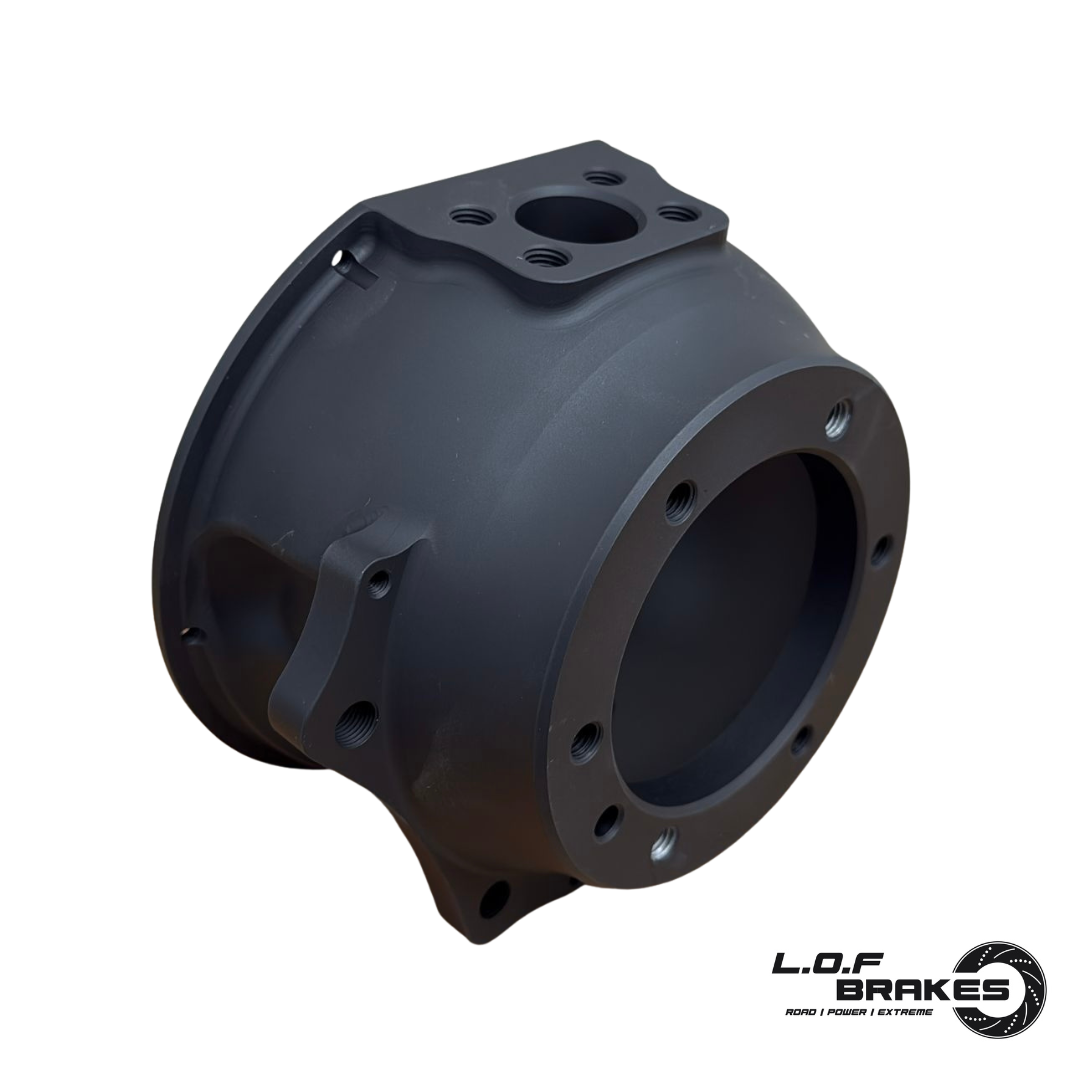

We have designed our kit by manufacturing a custom swivel housing to replace the original FRC2074/5

By re-designing the swivel housing we have made the best and simplest conversion on the market! Our swivel allows all the original axle components inwards of the swivel to be retained while updating the outer components to Land Rover Defender parts.

Benefits:

• Better braking performance
• Can be used with standard size steel rims & Alloys!
• Uses a standard vented Defender Disc
• No modifications or machining needed, making it a nice DIY installation
• Original track width retained, no adjustment to steering needed
• Uses all standard Land Rover parts, available world wide!

What is included in our front kit (bare):

• 2x LOF Billet alloy 7075 aluminium swivels
• 2x LOF Drive flanges (10/24 spline)
• 4x LOF Caliper bolts SYP500090
• 12x Stainless swivel seal retainer bolts
• 2x BSP Filler bungs

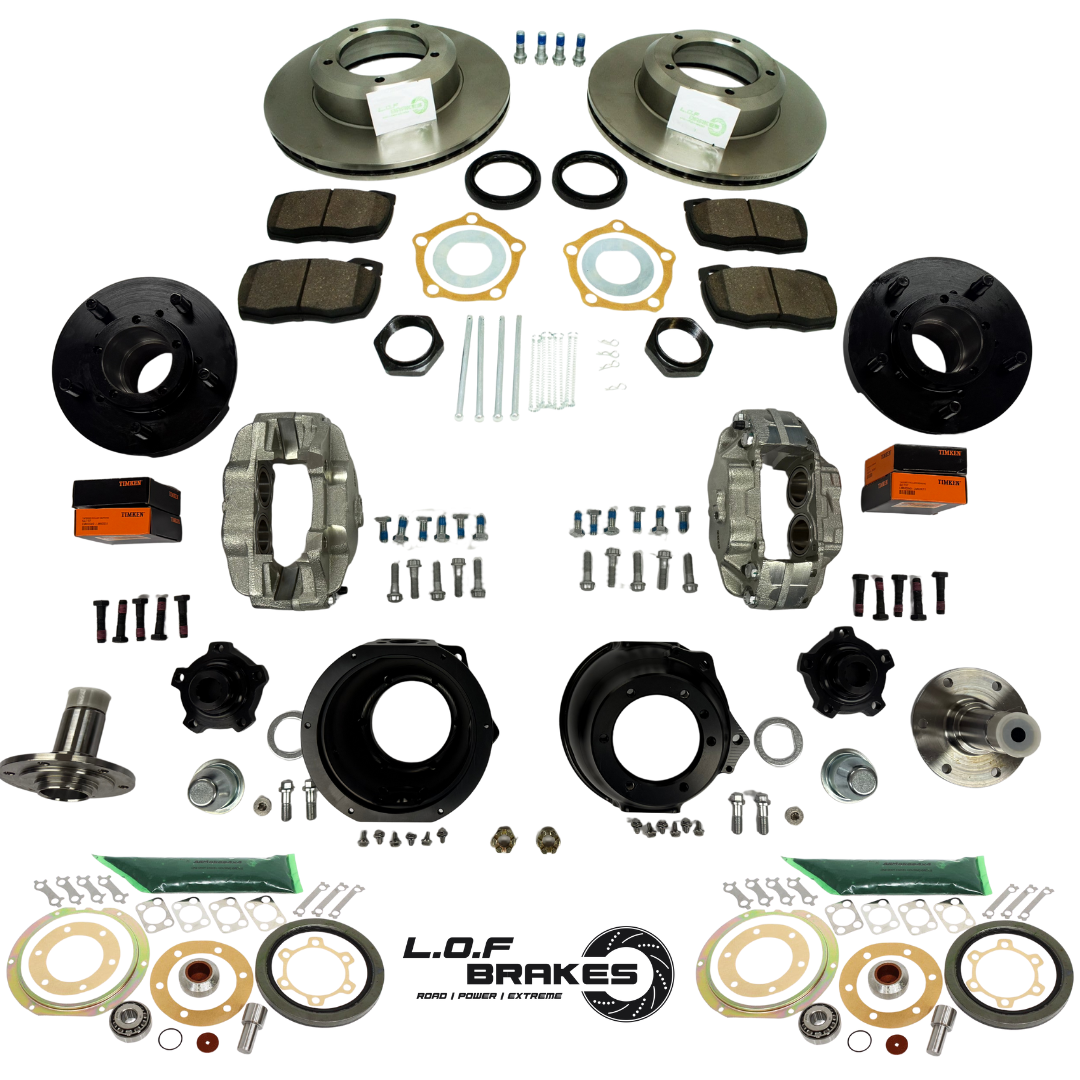

What is included in our front kit (complete)/ what you will need to assemble:

• 2x LOF Billet alloy 7075 aluminium swivels
• 2x LOF Drive flanges (10/24 spline)
• 4x LOF Caliper bolts SYP500090
• 12x Stainless swivel seal retainer bolts
• 2x BSP Filler bungs

+

• 2x Defender hubs RUB500240
• 4x wheel bearing RTC3429G
• 10x FTC1368 Disc bolts
• 10x BX110095 Drive flange bolts
• 12x SX110257M Stub axle bolts M10

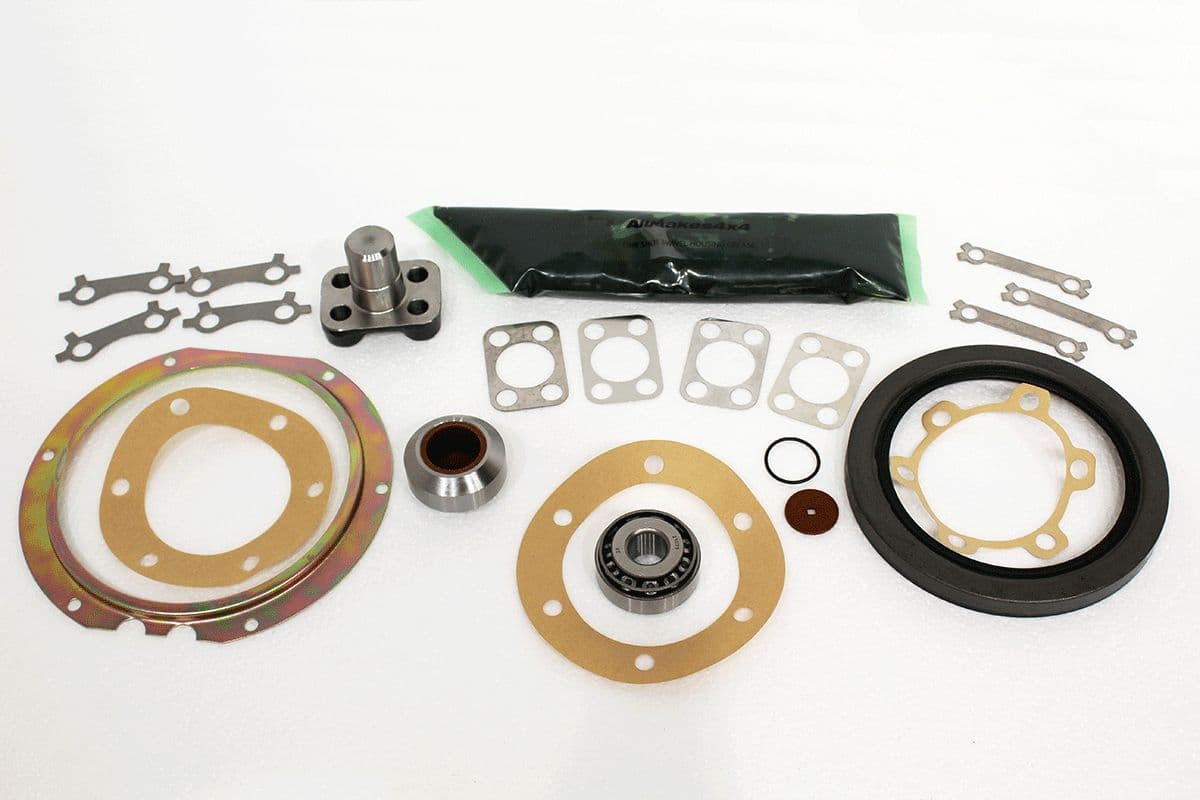

• 2x GA3181 Swivel rebuild kits
• 1x SEB500460/470 LOF Calipers (RRP £215ex)
• 2x FTC3154 Stub axles
• 2x FTC3185 Lock washers
• 2x FTC3179 Lock washers
• 4x FRC8700 Hub nuts

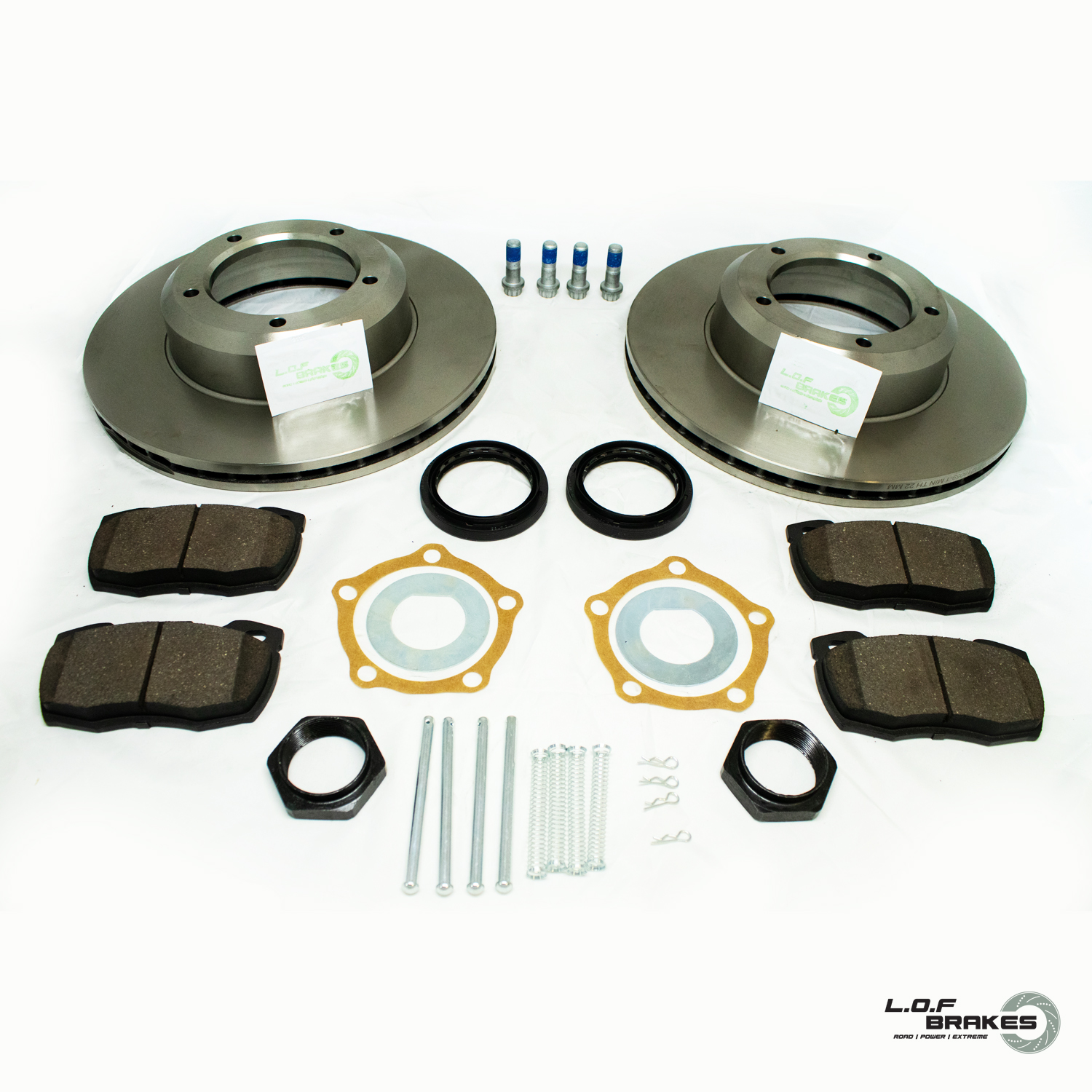

• 2x Vented Defender Discs (ROADspec Front vented brake kit complete- RRP £115ex)
• 4x Defender vented pads
• 2x FTC4785 hub seals
• 2x 3259 Castle nuts for drive shaft
• 2x 235968 Swivel seal retaining rings
• 2x 219098 Hub Caps
• 2x RTC3528 Corteco Swivel Seals


Essentially with the ‘bare’ kit you will need to source or purchase Land Rover Defender outer driveline components to fasten to our custom series swivel.

See our Series Rear disc brake kit too!

Note- For Free wheeling hubs you will need to use Defender free wheeling hubs, which are readily available and cost around £250 per pair brand new!

Good news!
This kit is now available globally and has even been reviewed by the Australian government authorities for there certification approval!
